3D AOI

The perfect combination of 2D and 3D

3D digital grating projection technology and Moiré fringe phase difference software algorithm.
Truly reflect the defect status of components.

Machine to machine communication: IPC-SMEMA-9851 or IPC-HERMES-9852 or IPC-2591 CFX.

High precision, high reliability

Using digital grating projection, no mechanical vibration, wear
Height test range: 20mm

The high-frequency grating ensures the detection accuracy, while the low-frequency grating can cover a larger detection range to ensure accurate 3D detection
Precise phase shift control

Accurate phase shift control to reduce measurement errors
Large-scale bending compensation

It can realize a large range of plate bending compensation, and the effect of removing shadows is good
8 projection

Optional 8 projection system to solve the shadow problem to the greatest extent
Automatically adapt to light and dark parts

Projection brightness can be adjusted in real time to meet the detection of parts with different reflectivity

Efficient

Improve product quality and reliability, increase production efficiency
Unite

Unified testing standards, docking with IPC
Timely

Timely feedback production process problems
Intelligent

Help Industry 4.0, lay the foundation for electronic intelligent manufacturing
Data analysis

Analyze test data statistically, provide process analysis, and improve process
Save human effort

Save manpower and reduce labor costs

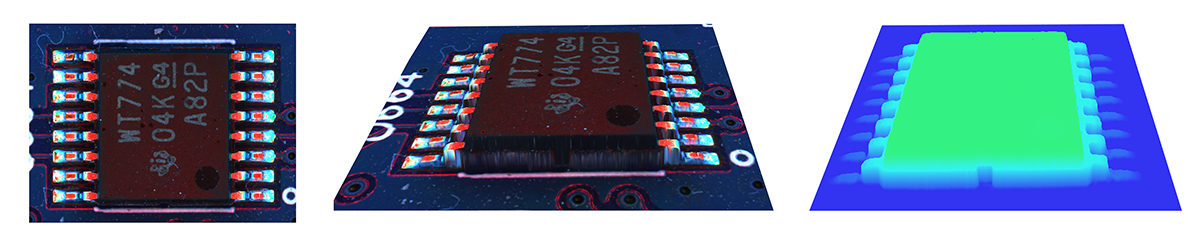

The height of the full-board components is quickly restored, which truly and directly reflects the defect status of the original.

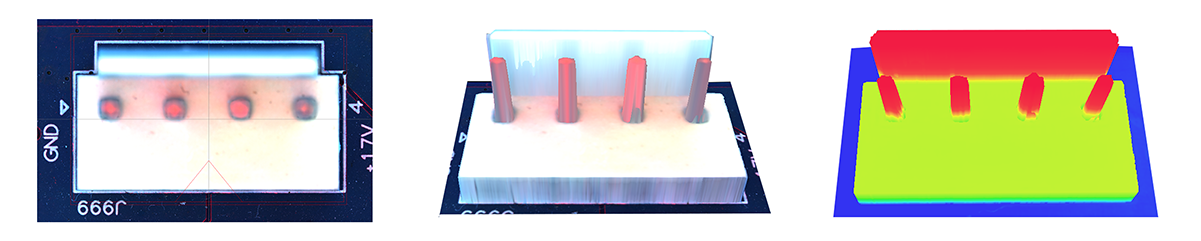

Eight projections (optional), multi-angle illumination system, eliminate the influence of the shadow of plateau parts on the three-dimensional image

Defects of BGA clamps can be accurately judged by Z deviation

product list

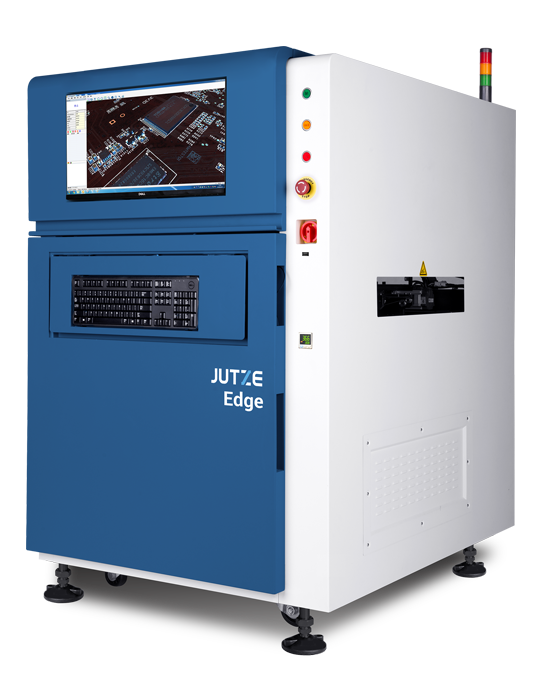

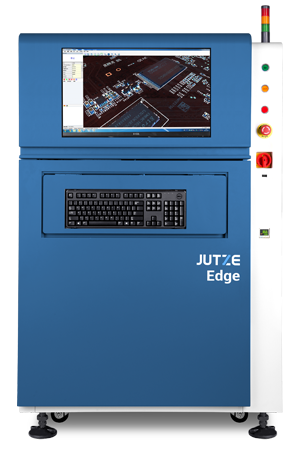

Edge

Device type: online automatic 3D AOI
Features: the perfect combination of 2D and 3D technology

Applicable substrate: 50mm x 70mm - 510mm x 460mm
Substrate thickness: 0.6mm - 6.0mm
Resolution: 8μm, 10μm，15μm
Dimensions: W1080 x D1300 x H1850(mm)
Weight: 950KG
